MEASURE
Intuitive menu to easily navigate, configure, view
and record data

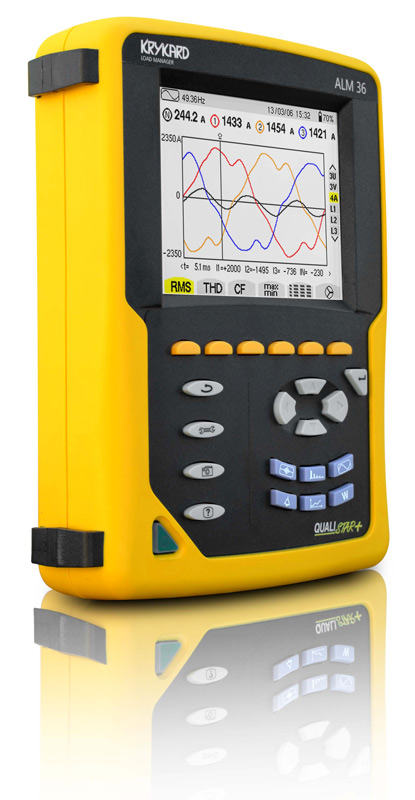

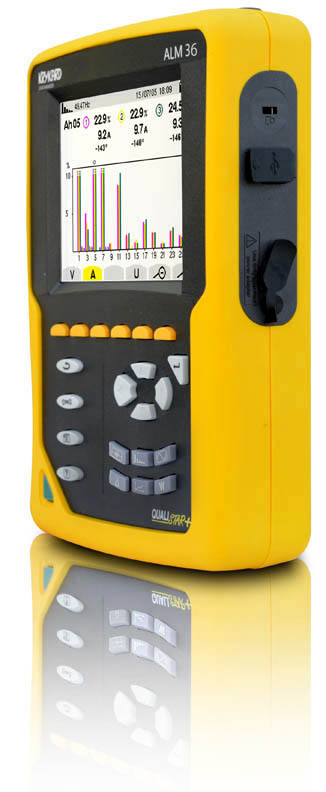

ALM 36
The ALM 36 is the top of the line model in the Krykard ALM 3X Series.
Why ALM 36?
It is an ideal device for those interested in in-depth PQ analysis. Being a device with the largest memory, it is also suitable for long and detailed field studies, where voluminous data is expected to be logged.
Apart from all the features offered by the ALM 33 & ALM 31, it also offers:
- True Inrush Meaurements
- Long Term Flicker
- Harmonics on the Neutral
- Up to 10,000 alarms on any of 40 different types of parameters
- Recording of 50 screenshots (pictures)
- Capture of 210 transients (4 cycles each)
Perfect for:
- Harmonic & PQ Studies
- Power & Energy Audits
- Maintenance & Trouble-shooting
- Long Studies and analysis
IEC 61010 | CATIV 600V Safety standard
Distortion Power Calculation
Expert
Enquire
Brochure
Standards for Performance & Safety
Complies with IEC 61000-4-30 measurement standard under Class B
High electrical safety standards
IP 53 rating protection
(IP 65 rating model also available)
IK 08 protection against shocks as per EN 62262
Fall – 1m as per IEC 61010-1
Kensington Security Slot
For anti-theft protection –
Ideal for engineers on the move
Unmatched Ease and User Experience that enhances your effectiveness
ALM 36
You can do more in less time
Auto CT recognition
Choose from 9 different CTs for measurement
CT/PT ratios are field programmable
Hindi Language option for operation
Color TFT display having a clear wide angle view
Hindi Language Option
Multitasking
Meets IEC 61000-4-30 Measurement Standard
PQ Expert Mode
Features
Night-view for comfortable viewing in low-light conditions
True Inrush
ALM 36
ALM 36
Standards

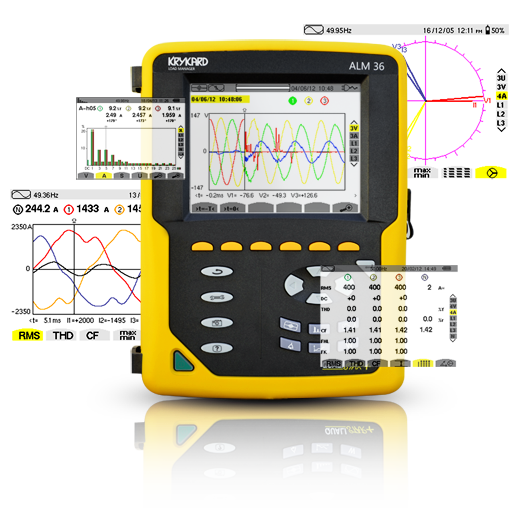

Multi tasking ability for simultaneous
Data Logging,
Alarm recording,
Inrush current recording,
Harmonic Analysis,
Transient recording,
Capturing Screenshots and Downloading of Data to a PC –
Flexibility to set different Transient threshold levels for V & I on each phase
Voltage & current inputs fitted with Colour-coded rings for easy
identification & connection
PANEL
LOAD MANAGERS
ISOLATION
TRANSFORMERS
SERVO
STABILISERS
Battery backup upto
13 hours for operation &
40 hours for data logging
Record just what you want
Quick one-touch Data Recording
4
sets of pre-recorded configuration for data logging
Start & Stop keys for quick energy recording
Record selected
measurement data over
many weeks
ALM 36
Capture up to 10,000 alarms on any of 40 different types of parameters
Complete Freedom to Select Parameters, Time
Interval and Duration
½ cycle RMS for V, U & I1s RMS for other parameters
Record up to 50 screenshots (pictures)
ALM 36
Capture up to 210 transients (4 cycles each)
Capture Inrush Current (capture Current & Voltage waveforms)
ALM 36
Record data or capture events or pictures – all at the same time
Software for effective analysis
PAT and DataView software for
Data Download, Real-time Views and Report Generation
Direct recording on PC with DataView software
Export data to Spread sheet
A wide range of
Predefined report
models available for quick printing
Measurements
Accessories
- AC+DC Voltages – upto 1000V P-N
- AC Currents – 5mA to 10,000Aac
- DC Currents – 50mA to 5000Adc
- Frequency – 40 to 69 Hz (400 Hz model available)
- kW, kVA (total & per-phase)
- kVAr total, kVAr distortion (total & per-phase)
- PF, Cosø, Tanø (total & per-phase)
- Wh, VAh, VArh, Dh (Distortion Energy)
- ½ Cycle Min & Max Voltage & Current values
- Current & Voltage waveform peak values
- Short-term Flicker (Pst) & Long-term Flicker (Plt)
- Crest Factor
- K-Factor
- Harmonics up to 50th order – V, U, I and VA and Neutral Current
- Phasor Diagram with phase angles
- Sequence of Harmonics (zero, -ve, +ve)
- V & I Transients (>78μs)
- Inrush Current
- Current & Voltage peak factors
- Unbalance on Voltage & Current
- Harmonic Loss Factor (FHL)
- THDf on V, U & I
ALM 36
ALM 36
ALM 36
Basic
Power & Energy
Power Quality
Free with instrument
Clamp options
