MEASURE
reasons that make our analysers the best choice
6
An unmatched combination of Range, Accuracy & Features has made Krykard Portable Analysers the preferred choice of engineers & energy managers in India.
2
Spend a few minutes with any model to know why our Portables are known to be the easiest to use in the market

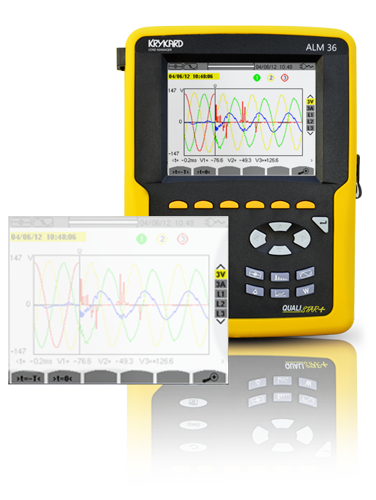

- Easy to read LCD screens

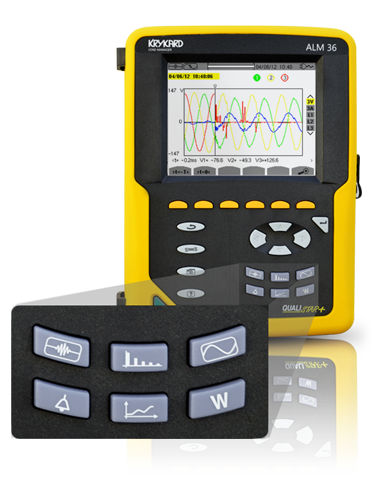

- Simple and accessible menus & buttons
- Designed to be used with minimum training
- Easy to use configuration & download software
Easiest to use
try once and you will find it difficult to choose anything else
1
Widest range in the market
meets every budget and every application
Models
1 CT
3 CT
4 CT
AC & DC
Currents
From
5mA
to
10,000 A
Cover most applications
From 11mm to 250mm dia clamps for use on cables, bus-bars and multi-run cables
Clamps
Power, Energy & Harmonics
Power Quality
Measurements
Systems
3
Comprehensive Measurements
all that you need
AC+DC Voltages – upto 1000V P-N •
AC+DC Currents – 5mA to 10,000Aac/ 50mA to 5000Adc •
Frequency – 40 to 69 Hz (400 Hz model available) •
Half-Cycle Min & Max Voltage & Current values •
Current & Voltage peak factors •
Unbalance on Voltage & Current •
Phasor Diagram with phase angles •
kW, kVA (total & per-phase) •
kVAr total, kVAr distortion (total & per-phase) •
PF, Cosø, Tanø (total & per-phase) •
Wh, VAh, VArh, Dh (Distortion Energy) •
Short-term Flicker (Pst) & Long-term Flicker (Plt) •
Crest Factor •
K-Factor •
Harmonic Loss Factor (FHL) •
THD on V & I w.r.t fundamental & RMS values •
Harmonics up to 50th order – V, U, I, VA and Neutral Current •
Sequence of Harmonics (zero, -ve, +ve) •
V & I Transients (>78μs) •
Inrush Current capture •
Basic
Power & Energy
Power Quality
4
Boosts productivity
powerful features that get your work done fast
Flexible data logging features include user-settable recording configurations with user-selectable parameters & logging interval
Powerful DataView Software
- View real-time instrument data directly on PC through DataView Software
- Merge MS Word, MS Excel and Data Tables for analysis and reporting
- Export to MS Excel or Convert to PDF for reporting
- Pre-defined and User-definable templates
Configure and use on any distribution system/ connection method
Multi-tasking allows you to perform multiple activities simultaneously to get more out of the analyser.
Do all these at the same time -
- View Real-time screens
- Record data
- Capture Voltage & Current Transients
- Capture In-rush Current
- Capture Alarms
- View recorded data
- Take Screenshots (pictures)
5
Built Tough
Rugged and meant for long field studies
Designed especially for Indian conditions
- Power supply specially ruggedised for Indian power quality conditions minimising the need for service support
- World’s first analyser with Hindi language option – because familiarity with language increases effectiveness
Meets stringent instrument protection standards
- IP 53 (IP 65 option)
- IK 08 protection against shocks as per EN 62262
- Fall – 1m as per IEC 61010-1
- Kensington Security Slot for anti-theft protection
6
- Branches across India with trained personnel to provide on-field technical & application support for you to get the best out of your analyser
- Repair and Calibration support available at Chennai.
Well Supported
Application, Service & Calibration support - All available in India
Chennai
Delhi
Ahmedabad
Mumbai
Coimbatore
Hyderabad
Bengaluru
Madurai
Kochi
Pune
